#Temperature and Humidity Data Collection Using Arduino and Scratch

Project Title: Temperature and Humidity Data Collection Using Arduino and Scratch

      1. Introduction:

● This project involves collecting temperature and humidity data using an Arduino and a DHT11/DHT22 sensor.

● The data will be displayed in Scratch and exported to an Excel file.

2. Components Required:

● Arduino Uno (or compatible board)

● DHT11/DHT22 temperature and humidity sensor

● Jumper wires

● USB cable for Arduino

● Computer with Scratch and Arduino extension installed

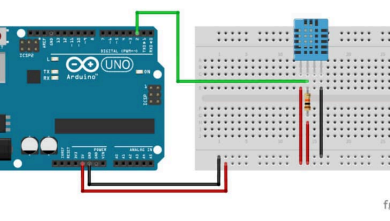

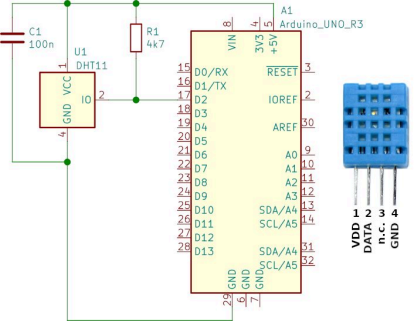

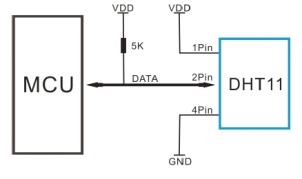

3. Circuit Diagram & Connection:

● Connect the VCC pin of the DHT sensor to 5V on Arduino.

● Connect the GND pin to GND on Arduino.

● Connect the Data pin to Digital Pin 2 on Arduino.

4. Software Setup:

● Install Scratch and the Arduino extension.

● Install the DHT sensor library in Arduino IDE.

● Upload the Arduino sketch to communicate with Scratch

5. Arduino Code:

● Open Arduino IDE and upload the following code:

#include <DHT.h>

#define DHTPIN 2

#define DHTTYPE DHT11 // Change to DHT22 if using that sensor

DHT dht(DHTPIN, DHTTYPE);

void setup() {

Serial.begin(9600);

dht.begin();

}

void loop() {

float temp = dht.readTemperature();

float hum = dht.readHumidity();

Serial.print("Temperature: ");

Serial.print(temp);

Serial.print(" C ");

Serial.print("Humidity: ");

Serial.print(hum);

Serial.println(" %");

delay(2000);

}

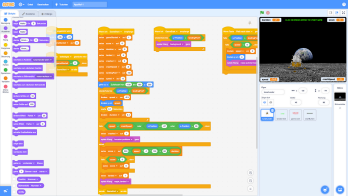

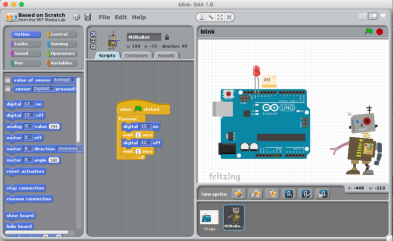

6. Scratch Configuration:

● Open Scratch and add the Arduino extension.

● Use Serial Read blocks to receive data from Arduino.

● Display temperature and humidity values in Scratch using variables.

7. Exporting Data to Excel:

● Use Scratch CSV Logger extension or manually copy data from Scratch to a CSV file.

● Open the CSV file in Excel for analysis.

8. Testing & Results:

● Ensure that Scratch is displaying live temperature and humidity values.

● Verify the exported data in Excel.

9. Conclusion:

● Successfully collected and logged temperature & humidity data using Arduino and Scratch.

● Data can be further analyzed for environmental monitoring applications.10. References & Additional Learning:

● Arduino Official Website

● Scratch Programming Guide

● DHT Sensor Datasheet

11. Additional Reference Videos:

● https://www.youtube.com/watch?v=b968xQr8Kwg(DHT11 Temperature Sensor Interfacing With Arduino).

● https://www.youtube.com/watch?v=zOa5o9Yq_ZU(Scratch Basics).

● https://www.youtube.com/watch?v=pCCJVt2251Y&list=PLk-9mEhYb2OVpfWfjU0F sV4vGKMvV84KN(Programming Arduino With Scratch).
